LED Interactive Display

LED Interactive Display


Where breakthroughs happen

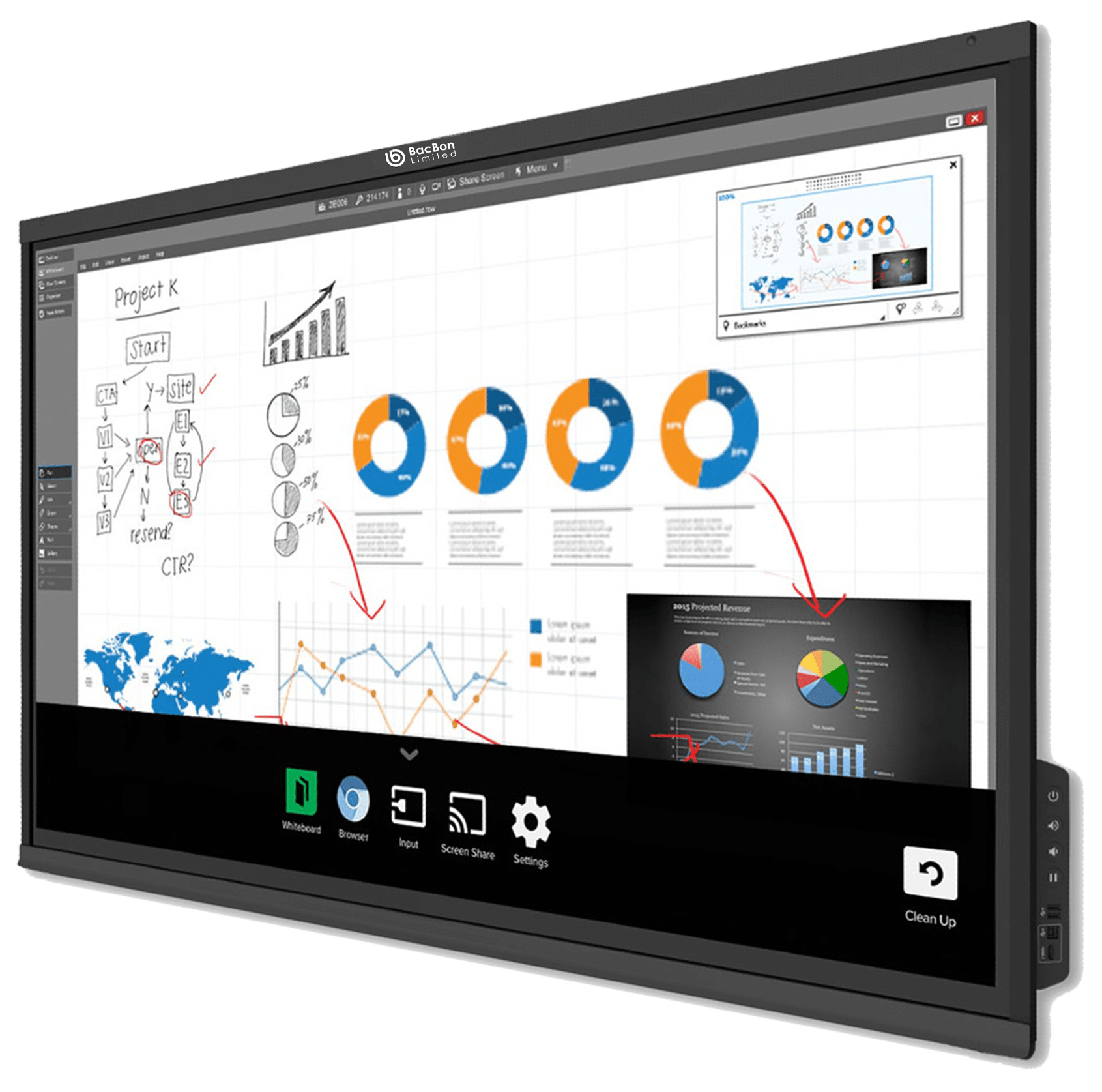

Breakthroughs happen faster when your teams can gather meeting notes, documentation and inspiration in one digital workspace. The BACBON BFC-65 Interactive SMART Board series with iQ is made for quick brainstorming sessions, and connecting remote teams on all sorts of devices. The next game changer for your business is only one productive meeting away.


Specification of LED Interactive Smart Board

Basic Features

> Highly integrated PC, Interactive Whiteboard, Speaker.

> Fast conversion between Android and Windows system.

> Support TV remote control function and F 1—F 12 function keys.

> Commonly used in computer keyboard.

> Support one-key child lock, U disk lock function.

> Multiple-Screen Sharing.

> Automatically identify signal source and switch channel to source.

Display

Model

FC- 65LED

FC- 75LED

FC- 86LED

Panel Size (Inch)

65''

75''

86''

Panel Dimension

1428.48*803.52mm

1649.66*927.93mm

1895.04*1065.96mm

Dot pitch

0.496*0.372mm (H*V)

0.4296*0.4296mm (H*V)

0.4935*0.4935mm (H*V)

Color

Black

Panel Type

LED

Brightness uniformity

≥ 72%

Glass

4mm fully tempered anti-glare explosion-proof glass

Resolution

3840*2160 (4K)

Ratio

16:9

Brightness

350cd/m2

Contrast

4000:1

View Angle

178°

Response Time

4ms

Color

16.7 Billion

Backlight Lifespan

>50000 hours

Touch

Technology

IR

Touch points

10-point writing & 20-point touch

Gestures Menu

Support (Menu/Volume/Signal source)

Induction Object

Fingers, Pen or any opaque objects

Induction Size

≥3mm

Installation

Can Disassemble from front

Response time

< 6ms

Supported OS

Windows7, Windows10, Android, Mac, Linux

TV

Image format

PAL/SCEAM/NTSC

Audio mode

B/G; D/K; I

Stereo System

Yes

Channel

200

HNB

Yes

Signal enhancement

Yes

Audio Speaker

2X15W/8Ω

Android

Version

Android 6.0 Embedded system

Processor

CortexA53 Quad core 1.5GHz

RAM

1.5GB

ROM

8GB

Wi-Fi

Yes

OPS PC

CPU

Intel core i5 6th Gen.

SSD

M.2 SSD 128G

Memory

8GB DDR4

HDD

Optional

Wi-Fi

Integrated WIFI 802.11b/g/n

USB

USBX6 (2.0X2, 3.0X4)

LAN

RJ45X1

HDMI

1

DP Port

1

Ports

Input

AVX1, RFX1, VGAX2(FrontX1), TFX1, YpbprX1, MICX1, AUDIOX1 (FrontX1), HDMIX3 (FrontX1), LANX1

Output

SPDIFX1, EarphoneX1, AVX1, VGAX1, HDMIX1

Other ports

TV-USB2.0X3 (FrontX1), RS232X1, USB3.0X1 (Front, under PC), Touch USBX2 (FrontX1)

Accessories

Wall-mount brackets, Remote, Power Cord (1.5m)X1, PenX2, Warranty CardX1

Power

Power

90-240VAC 50/60Hz

Power consumption

≤170W (Not includes OPS)

Max Power consumption

≤ 200W

≤300 W

≤ 350W

Standby power

≤0.5W

Packing & Weight

Size

65”

75”

86”

Product Size

(LXHXD) mm

1515X947X112

1736X1073X119

1990X1210X114

With Wall-mount

1515X947X130

1736X1073X130

1990X1210X144

Net Weight

48kg

60.3kg

79kg

Gross Weight

58kg

75kg

92kg

Interactive Whiteboard Software Features

1.       Includes most of popular teaching tools like pens, eraser, spotlight, camera, Screen shape, rulers, compasses, set square, etc.

2.       Page recording, saving and playing back.

3.       Various of object operation: copy, clone, delete, move, lock, zoom in/out, rotate, redo, cancel, group, ungroup, hyperlink (sound and website).

4.       Import Microsoft Office files (Word, PPT, excel, etc.), edit, save, print etc.

5.       Can zoom in/out, rotate photos by finger gestures.

6.       Polygon drawing including lines, graphics, triangles, pentagons, support of shape recognition.

7.       Unlimited writing range by dragging the pages freely.

8.       Handwriting recognition (Chinese and English).

9.       Different OS: windows XP, Vista hand Win 7, Win 8 & 10.

10.  Multi-language software: English, Spanish, Portuguese, Arabic etc.
